Epson SureColor SC-T5200 36″ Large Format Printer

The SureColor SC-T5200 is a 36-inch printer that offers a great combination of quality, performance, and value. It is perfect for busy production environments that require high productivity and flexibility. With its powerful image processing and fast print speed, this printer is designed to meet the demands of the market.

  • 36-inch Large Format Printer
  • Ideal for graphics, CAD, and GIS
  • Large-capacity ink cartridges
  • PrecisionCore TFP printhead
  • UltraChrome XD Inks
  • PostScript support with 2×1.6GHz CPUs

Product Data Sheet

Product Enquiry


Explore the Epson SureColor SC-T5200 Printer

Ideal for graphics, CAD and GIS

The Epson SureColor SC-T5200 Large Format Printer belongs to the SureColor SC-T series of large-format printers. These printers can create top-notch graphics, CAD, and GIS applications for use in a variety of fields. These fields include design, commercial printing, copy shops, architecture, engineering, retail, and education. They are also renowned for their capacity for rapid & four-color printing.

Highly productive

The SC-T5200 is designed to maximize productivity with its 1GB RAM and optional 320GB HDD for job caching and recall. It also supports PostScript with dual 1.6GHz CPUs, allowing for fast printing of large data-rich files from leading design & CAD programs. Additionally, it has a fast output time of just 28 seconds for an A1 print.

Detailed Specifications of Epson SC-T5200

  • High Productivity:  With a fast print speed and powerful image processing capabilities, the SC-T5200 can print an A0 image in as little as 50 seconds. Additionally, it features an integrated high-speed auto-cutter.
  • High Precision: The printer has a 2880x1440dpi resolution and uses a PrecisionCore print head. This print head features Variable Sized Dot Technology (VSDT) for super fine lines, superior fills, and halftones with optimized ink application.
  • High Quality: The all-pigment SC-T5200 Epson UltraChrome XD ink produces water and scratch-resistant prints with accurate, consistent & vibrant color.
  • High Reliability: The printer boasts a solid design and construction, supported by a “heads-n-all” warranty that customers can extend up to 3 years.
  • High Flexibility:  The Epson SC-T5200 Large Format Printer supports roll, cut sheet, and thick board up to 36 inches wide. It also provides borderless output in a variety of sizes. It also has a media bin with selectable flat or folded presentation.
  • High Convenience: The printer has an LED control panel with integrated help. Additionally, it features all-front loading consumables, spindle-less roll mounting, and a Barcode Roll Media Management system.
  • Space-Saving Installation: The printer has a small footprint and can be installed and operated against a wall or in a corner.
  • Cost-Effective Operation: The SC-T5200 has low ink consumption, low power consumption, a large waste tank & individual color cartridges in sizes up to 700ml.
  • Performance Workgroup Support: The printer has a large 1GB memory and high-speed Gigabit Ethernet and comes with remote management software. It also has an optional 320GB HDD for continuous multi-user operation with rapid direct reprint,
  • Performance Workflow Support: The SC-T5200 has HP-GL/2 and RTL emulation, remote job and error status notification, and a job costing utility. It also has optional high-speed Adobe Postscript & wide format scan/copy/share MFP functionality.
Features of SC-T5200
Epson Precision Core Technology

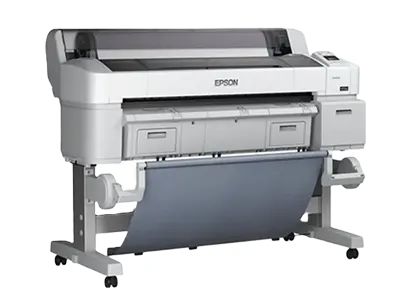

Epson SC-T5200 Side View

Economic to Run with Flexible Media Support

The SureColor Technical Series is available in three sizes to meet various output needs. The 24-inch models can produce output up to A1 and are available in desktop or floor-standing versions. The 36-inch models can produce output up to A0, while the 44-inch models can support B0 and larger. These models have low ink consumption, ultra-low power consumption, and cost-effective waste tanks. They use ink cartridges that come in 110ml, 350ml, and 700ml sizes to cater to different operational & printing cost requirements.

The Technical series is capable of accommodating a wide range of media types, including both rolls and single sheets. It can handle light stock for draft work as well as thicker stock up to 1.5mm for model and presentation work. The series also features a high-speed auto-cutter that can slice an A1 sheet in just 2 seconds. Additionally, it has a spindle-less design for easy roll media loading. Optional Roll Media Adaptor kits and Roll Belts are available for users who work with multiple media types. The printers also come equipped with a Roll Media Barcode Management system to track consumption and enable automatic re-configuration upon loading. Dual Roll versions of the 36” models are available for faster roll exchange. Additionally, the printer automatically rotates images for optimal media consumption. Large print runs can span over multiple rolls for efficient, uninterrupted production.

Easy to Install and Flexible to Operate

The SureColor Technical series of printers comes equipped with high-speed networking capabilities that support the latest addressing and security protocols. These printers are designed to integrate seamlessly with standard Macintosh® and Windows® applications. Additionally, they have support for HP-GL/2 and RTL emulation, which is particularly useful for specialized CAD, GIS, and mathematical applications.

All models of the SureColor Technical series have easily accessible front-loaded consumables. They also feature a compact design with all connections located on the right side, making it possible to operate them against a wall or in a corner. These printers provide remote email notifications for job status and errors. Additionally, they feature a high degree of self-maintenance and built-in help.

The floor-standing configurations of these printers come with a stand and media bin that has adjustable output presentation. The single roll models have an adjustable bin that can hold up to 20 sheets with the flat or folded display. The dual roll models have an extra-large bin that can be completely stowed away when not in use. Additionally, an optional auto take-up reel is available for the model, which enables high-volume roll-to-roll production.

To delve deeper into the technical intricacies of this printer, take a look at the attached product datasheet or visit the designated link for Product Support.

Quality Results at High Speed

The SureColor technical series features advanced design features, precision components, a solid laser-welded chassis, and fine-tolerance robotic assembly. These printers are capable of printing an A1 image in as little as 28 seconds. The design ensures consistent operation at high speeds with accurate media transport, minimal movement, and low noise levels. All models in the series use Epson’s patented Thin Film Print heads with micro-fine nozzles that support resolutions up to 2880×1440 dpi. The factory fits the print heads to ensure maximum print precision and durability, eliminating the need for frequent replacements. The integrated Variable-size Droplet Technology further enhances fine detail. Additionally, it enables enhanced half-tone results and precise ink density control, resulting in superior color and fill consistency while minimizing ink consumption.

Dimensions 81 × 140 × 112 cm
Printing Method PrecisionCore™ TFP print head
Ink Technology Ultrachrome® XD
Colours Photo Black [Pigment], Matte Black [Pigment], Cyan [Pigment], Yellow [Pigment], Magenta [Pigment]
Minimum Droplet Size 3.5 pl, With Variable-Sized Droplet Technology
Nozzle Configuration 720 Nozzles Black, 720 Nozzles per Color
Printing Resolution 2,880 x 1,440 DPI
Paper Formats A1, A2 (42.0x59.4cm), A3+, A3 (29.7x42.0 cm), A4 (21.0x29.7 cm), B2 (51.4x72.8 cm), B3, B4, A0, 17", 24", 36"
Product dimensions (Width x Depth x Height) 177.5 x 81.6 x 103.4 cm
Product Weight 60 Kg
Package Dimension 140.5 x 81.3 x 112.8 cm
Package Weight 84 kg
SKU C11CD67301A0
EAN 8715946542188
Warranty 12 months of On-site service (Terms & Conditions Apply)
What’s In The Box
  • Setup guide
  • User manual (CD)
  • Driver and utilities (CD)
  • Power cable
  • Individual Ink Cartridges
  • Maintenance box
  • SureColor T-Series Printer
