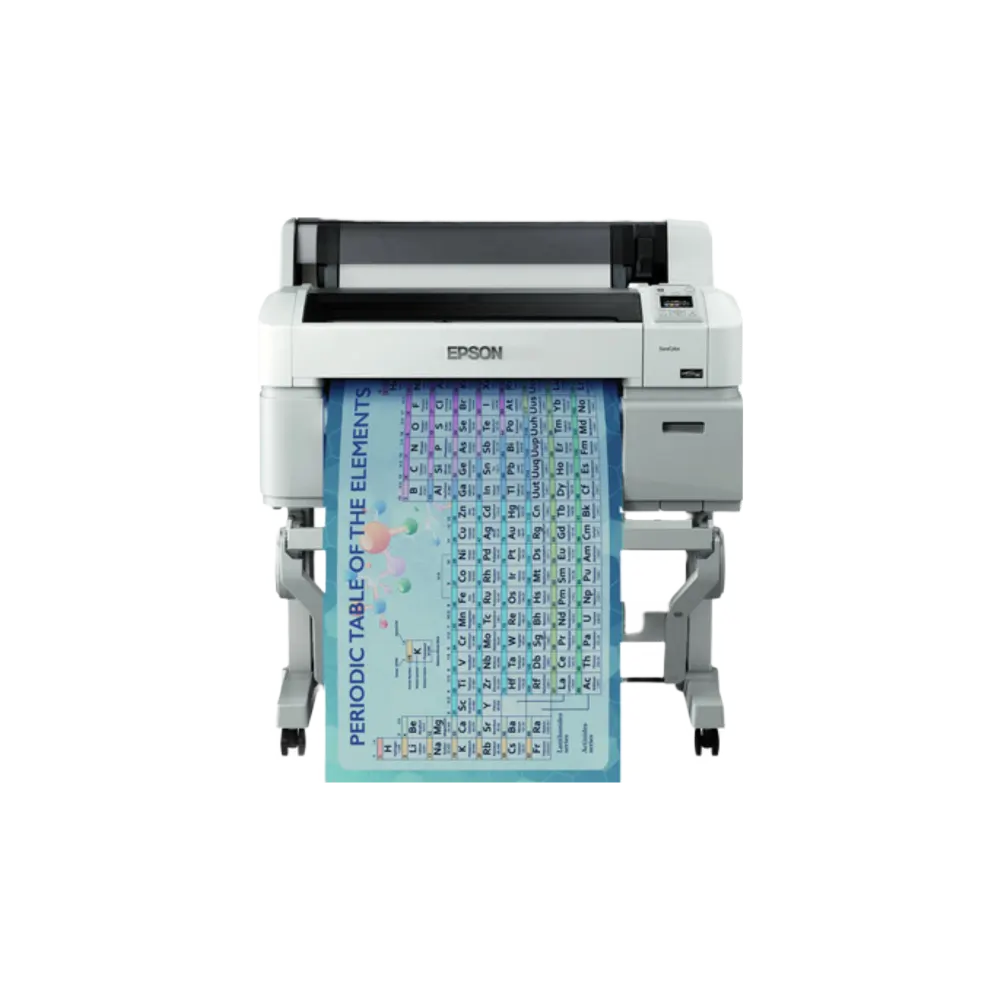

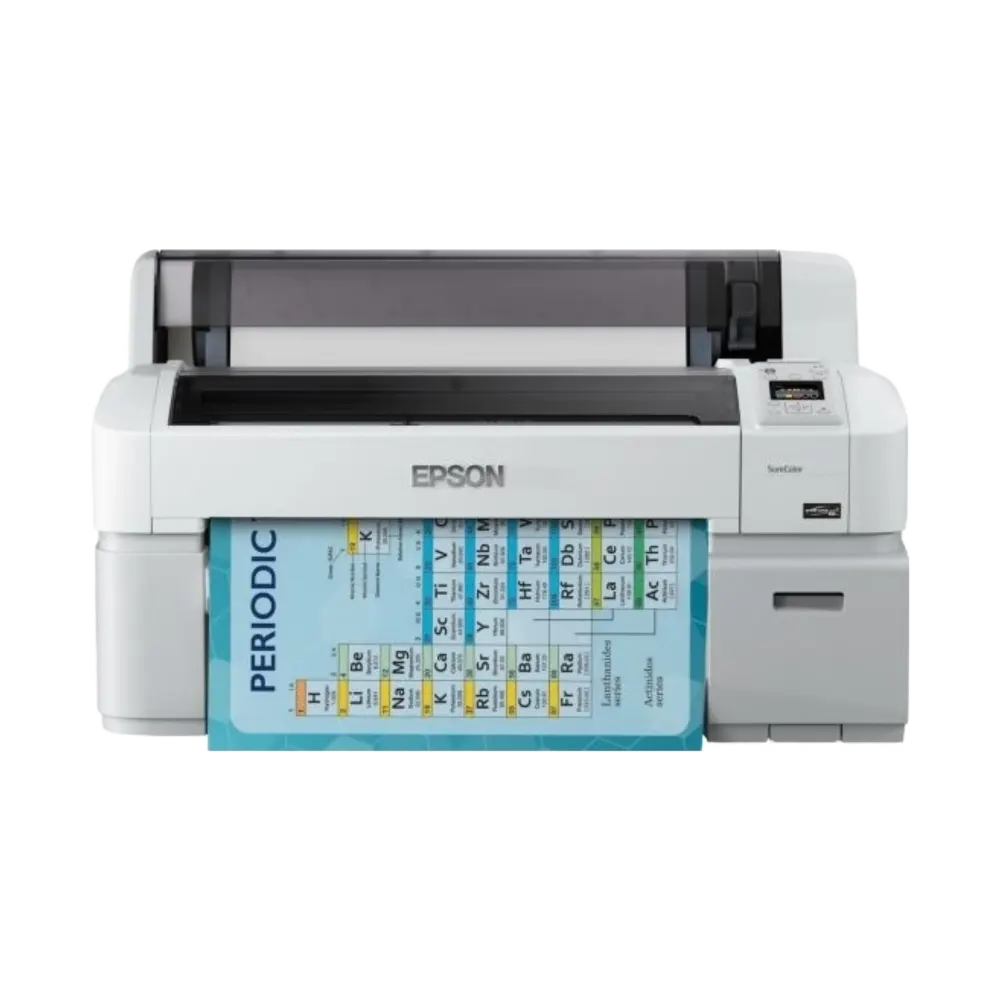

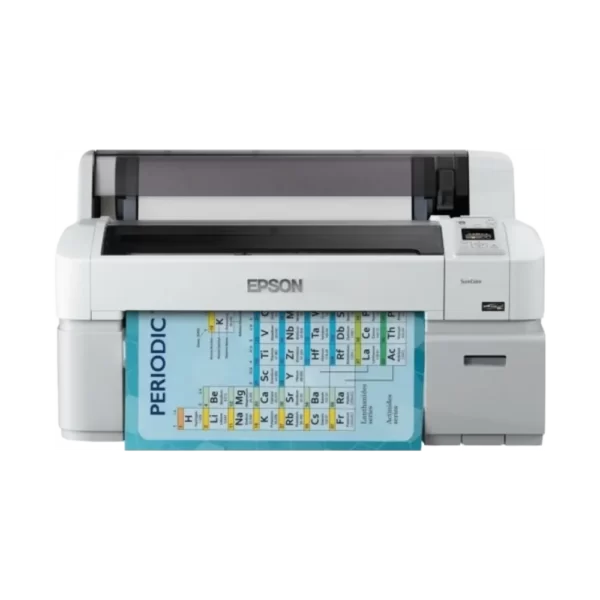

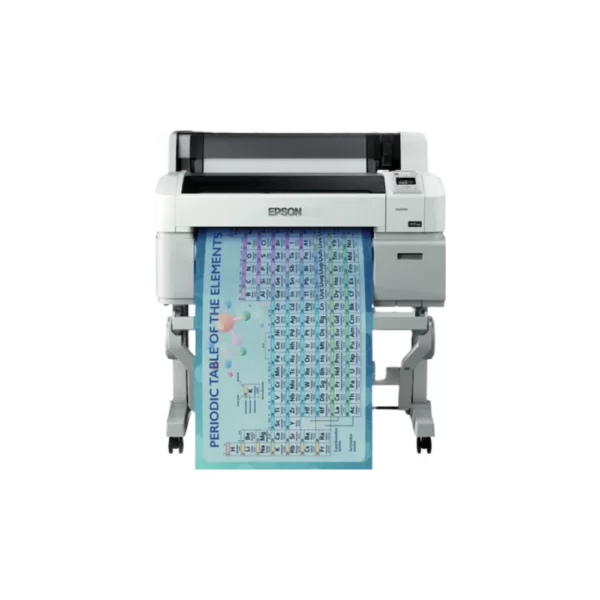

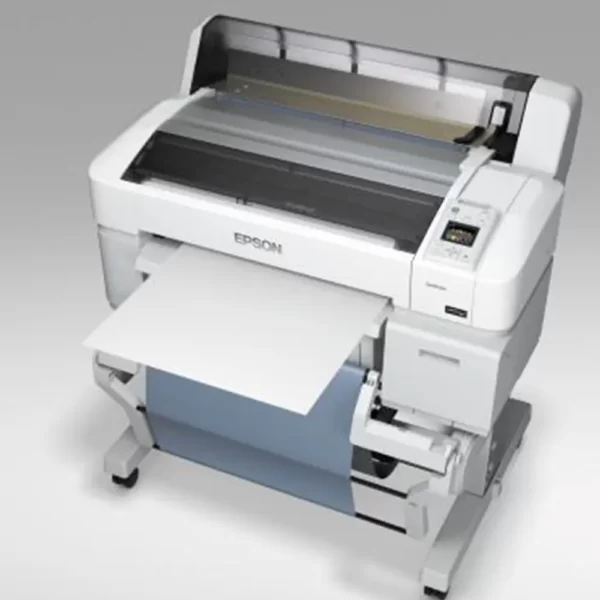

Epson SureColor SC-T3200 24″ Printer (With Stand)


A high-performance printer for busy graphics, CAD, and GIS production applications is the SureColor SC-T3200. To help users save time and money, it combines quick print speeds, potent image processing, and high-quality printing capabilities. The printer’s versatility in terms of media compatibility enables customers to print on a variety of materials, while PrecisionCore TFP printheads and UltraChrome XD ink help to give the highest level of performance and value.

  • 24-inch large format printer
  • Ideal for Graphics, CAD, and GIS
  • PrecisionCore TFP Printhead
  • UltraChrome XD Inks
  • PostScript support with 2×1.6GHz CPUs

Product Data Sheet

Product Enquiry


The Epson SureColor SC-T3200 Printer is a professional-grade, high-quality printer from the SureColor technical series. Its design caters to printing wide-format materials such as posters, banners, and technical drawings. They have cutting-edge features like precise components, a sturdy laser-welded chassis, and fine-tolerance robotic assembly that enable quick and accurate printing.

High-resolution printing and accurate ink density control are provided by Thin Film print heads with micro-fine nozzles. These print heads also feature integrated Variable-Size Droplet Technology, leading to improved color and fill consistency. These printers employ Epson UltraChrome Ink, an all-pigment ink that creates vivid, long-lasting prints on a variety of substrates. The XD formulation’s improved red and green tones and extended color gamut make it especially well-suited for POS, display, and presentation work. The printer can alternate between the matte and photo blacks included in the ink set according to output demands. Epson designed the SureColor Technical series printers to provide reliable, high-quality printing for a variety of applications.

Flexible Media Support Techniques for Epson SC-T3200

The SureColor Technical series has three different printer sizes to meet different output requirements.

The 24-inch (610mm) models support output up to A1 and come in a desktop or floor-standing form. The 36-inch (914mm) versions can handle output up to A0, while the 44-inch (1118mm) models support output up to B0. The printers are designed to be cost-effective, featuring large, affordable waste tanks and consuming minimal power and ink. They use ink cartridges in three sizes (110 ml, 350 ml, and 700 ml) to meet different operational and cost-per-print needs.

The Epson SureColor SC-T3200 Printer is designed to accept a wide range of roll and single-sheet media. It can handle paper as light as 80gsm for drafts and has a straight path for thicker stock up to 1.5mm for presentations and models. The series features a heavy-duty, high-speed auto-cutter that can cut a wide variety of media and slice an A1 sheet in just 2 seconds. Roll media is quick and easy to load with a spindle-less design that facilitates easy exchange. For users who work with multiple media types, optional Roll Media Adaptor kits are available for pre-attachment to stored rolls. Additionally, Roll Belts are offered for tension maintenance and edge protection.

All printers have an inbuilt Roll Media Barcode Management system that tracks consumption and enables automatic reconfiguration upon loading. The 36-inch and 44-inch models can also be ordered in a dual-roll version. This allows for fast roll exchange (26 seconds) and manual or automatic roll selection with configurable parameters. The system can automatically rotate images for optimal media consumption. Additionally, it can span large print runs over multiple rolls for efficient, uninterrupted production.

For a deeper understanding of the technical aspects of this printer, please review the attached product datasheet or access the provided link for Product Support.

Key Features of Epson SC-T3200 Printer

  • High Productivity: The printer can generate an A1 image within 28 seconds and create an A1 sheet in just 30 seconds.
  • High Precision:  The Epson PrecisionCore™ print head with VSDT enables printing at a resolution of 2880x1440dpi. This results in excellent quality prints with crisp lines, smooth fills, and accurate halftones due to the optimized ink application.
  • High Quality:  The Epson SC T3200 UltraChrome™ XD ink consists entirely of pigment and produces prints resistant to water and scratches. Additionally, it maintains accurate, consistent, and vibrant colors.
  • High Reliability: The product has a sturdy structure and a well-planned design. It is accompanied by a comprehensive warranty that covers all aspects, which can be extended for up to three years.
  • High Flexibility: This printer can handle roll, cut sheet, and thick board materials that are up to 24″ (610mm) wide and produce borderless output in various sizes. The floor-standing model comes with a media bin that can present the output in either a flat or folded manner.
  • High Convenience: The LED’s control panel includes an inbuilt help feature, and all consumables can be loaded from the front. The roll mounting does not require a spindle, and there is a Barcode Roll Media Management system.
  • Cost-Effective Operation:  Less ink and power consumption, along with a large waste tank and the availability of individual color cartridges in various sizes up to 700ml.
  • Performance Workgroup Support: This product comes with a generous 1GB memory and fast Gigabit Ethernet. It also includes remote management software and the option to add a 320GB HDD for uninterrupted use by multiple users. This feature offers the added benefit of quick reprinting.
  • Performance Workflow Support: HP-GL/2 & RTL emulation2, remote job, and error status notification, job costing utility, optional high-speed Adobe® Postscript®
Features - Epson T3200
Epson Precision Core Technology

Easy to Install and Flexible to Operate

The Epson SC-T3200 Printer comes equipped with high-speed networking capabilities and supports the latest addressing and security protocols. They are compatible with standard Macintosh and Windows applications. Additionally, they support HP-GL/2 and RTL emulation for specialized CAD, GIS, and mathematical applications. Epson designed the printers with convenient, all-front-loaded consumables and a compact design. Additionally, they placed all connections on the right side, allowing users to place them against a wall or in a corner.

This technical printer boasts a high degree of self-maintenance and includes built-in help. Additionally, it provides remote email notifications for error and job status updates. The floor-standing configurations come with a stand and media bin with adjustable output presentation. Meanwhile, the Single Roll models feature an adjustable bin that holds up to 20 sheets with a flat or folded display. The Dual roll models have an extra-large bin that can be stowed when not in use. Additionally, an optional auto take-up reel is available for the T7200 model to enable high-volume roll-to-roll production.

An optional PS Module provides the same functionality, with additional high-speed, hardware-based Adobe original Postscript 3 image processing. The PS functionality operates via hot-folder ‘drag-n-drop’ with configurable job processing and selectable document security. An optional Wide Format Scanner is also available for use with the 36-inch and 44-inch printers. The scanner supports media up to 38 inches wide and provides high-speed, high-resolution color scan, copy, and document-sharing facilities. Customers can purchase the Scanner and PS Module along with the relevant printer models to create a complete, high-performance MFP system.

Weight 100 kg
Dimensions 80.9 × 116.9 × 124 cm

Printing Technology PrecisionCore™ TFP print head
Printing Resolution 2,880x1,440 dpi
Ink Technology Ultrachrome® XD aqueous pigment ink
Maximum Printing Speed 28 sec/A1 on Plain paper
Nozzle Configuration 720 Nozzles black, 720 Nozzles per colour
Minimum Droplet Size 3.5 pl, With Variable-Sized Droplet Technology
Colours Photo Black, Matte Black, Cyan, Yellow, Magenta
Paper Formats A1, A2, A3, A4, B2, B3, B4, 17 " (43.2 cm), 24 " (61.0 cm)
LCD screen Type: Color, Diagonal:􀀀6.8􀀀cm
Product dimensions (Width x Depth x Height) 105.0 x 81.3 x 111.7 cm
Product weight 67 Kg
SKU C11CD66301A0
EAN 8715946542171
Package Dimension (Width x Depth x Height) 116.9 x 80.9 x 124.0 cm
Package Weight 100 Kg
Warranty 12 months on-site service (Terms & Conditions Apply)
What’s In The Box
  • Driver and utilities (CD)
  • Ink set
  • Power cable
  • Setup guide
  • User manual (CD)
  • Warranty Documents
  • Main unit
